The ‘Colorado’- 16 x 24 version -PDF + fully editable CAD files in .dwg format
-16’ x 24’ footprint
-500 sq ft of interior floor area
-large loft bedroom
-fully editable CAD files are included, for you or your drafter to make design changes
-PDF only plans are available if you will be working with me to make design changes - please be in touch

This larger size of this version of the ‘Colorado’ allows for a conventional, code-legal set of stairs up to a larger loft bedroom. The drawings show a bunk room on the main floor but it could just as easily accommodate a small kitchen instead, giving you self-sufficiency for longer-term stays.

The plan set includes these drawings and information:

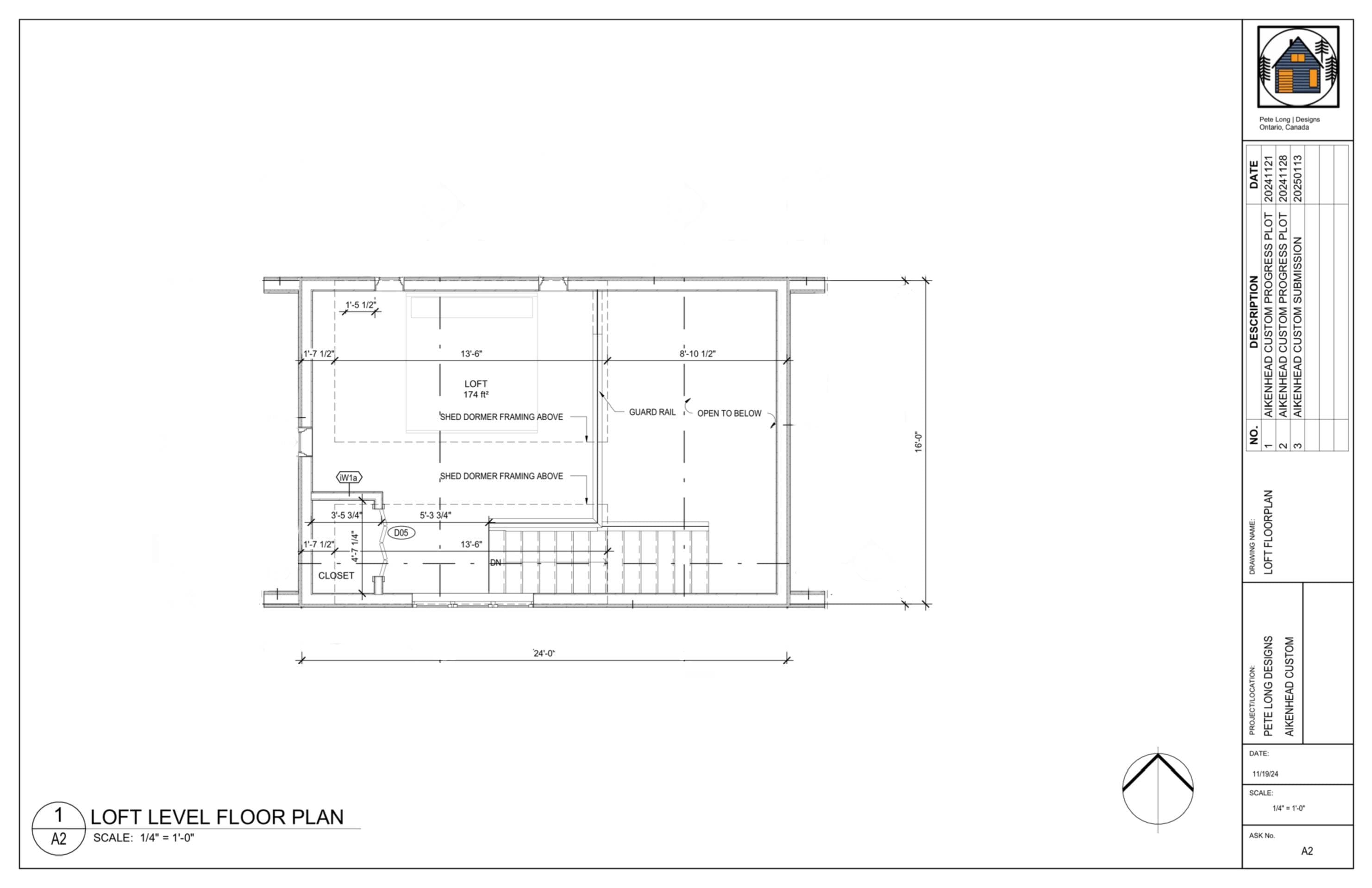

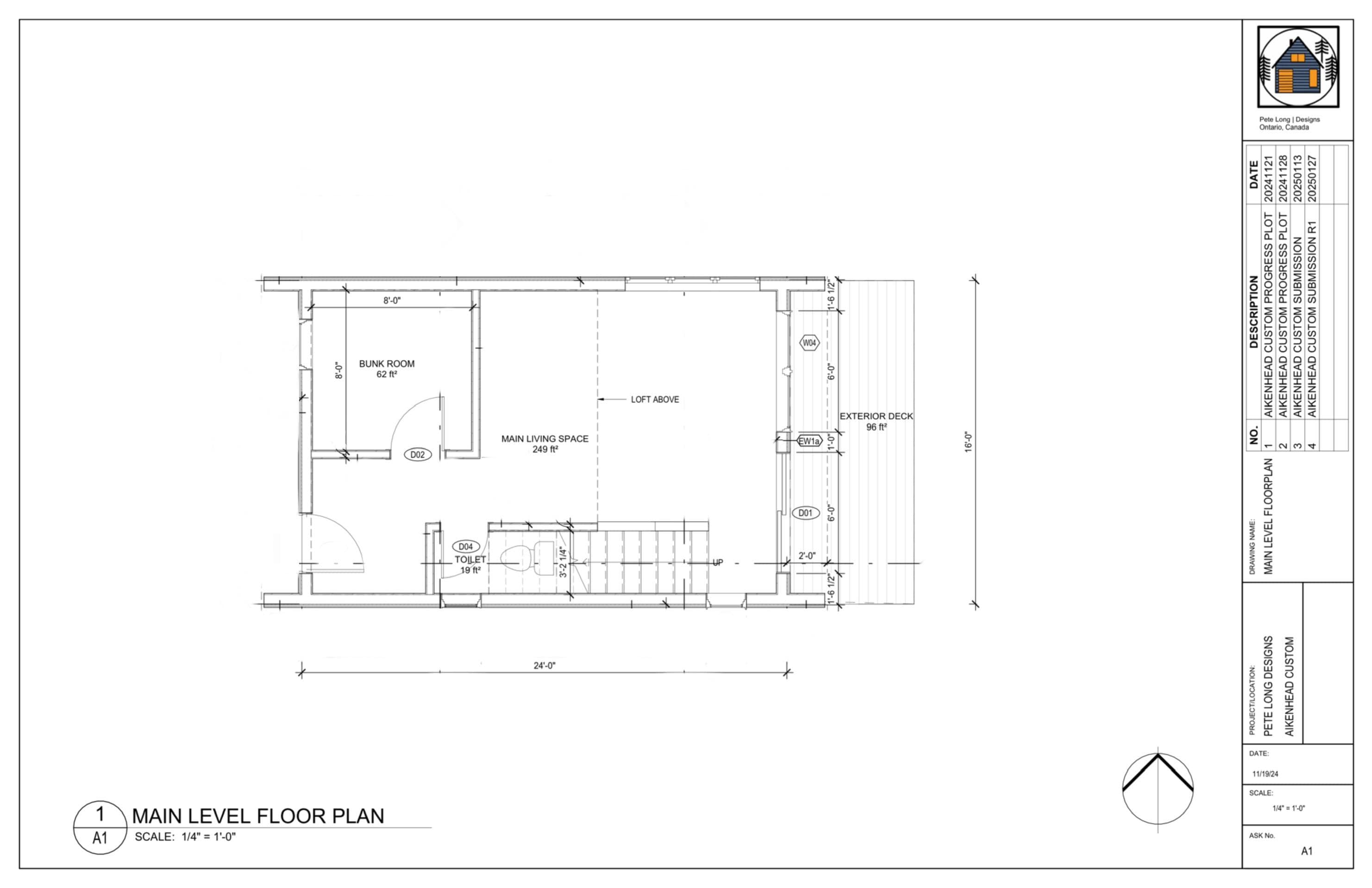

* Floor plans for main floor and loft floor

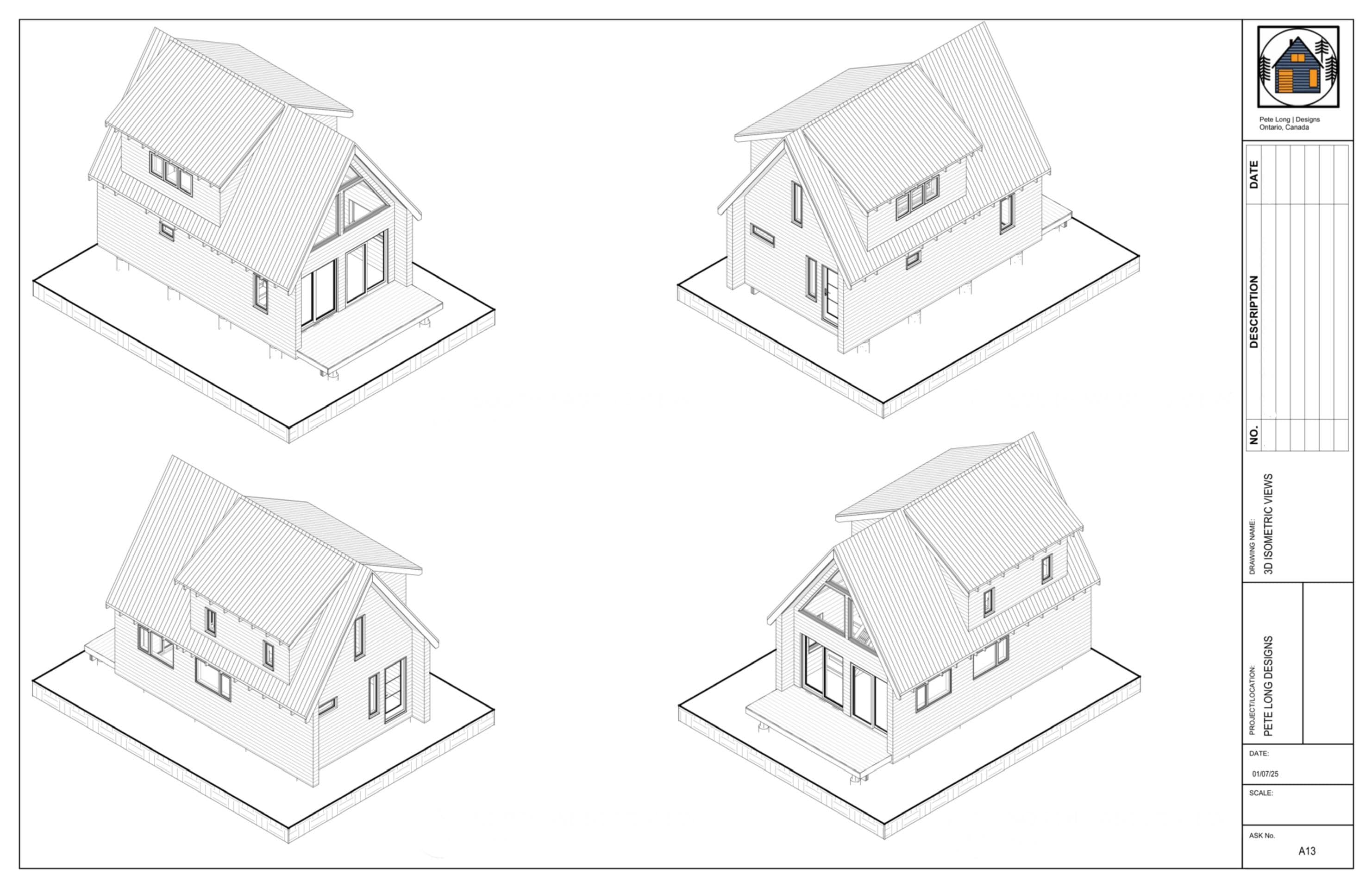

* All 4 exterior elevations
* Building sections
* Framing details & sections
* Window & Door schedules
* Main floor & Loft floor framing plans
* Pier foundation plan
——-
please note: these are DIGITAL files that you will download and print yourself
