the NorthEast Plus

The NorthEast Plus expands the wide-open feel, fantastic light and classic proportions of my best-selling NorthEast Original, with a larger kitchen and living room, and 2 loft bedrooms, with sleeping for up to 6.

Key Specifications:
-1284 sq ft interior floor area
-32’ x 48’ footprint
-Height: 19’-6”
-Sleeps 6
-Cathedral Ceilings
-Full-sized Bathroom
-Full-sized Kitchen
-Main-floor Laundry

Architectural-D size plan set includes:

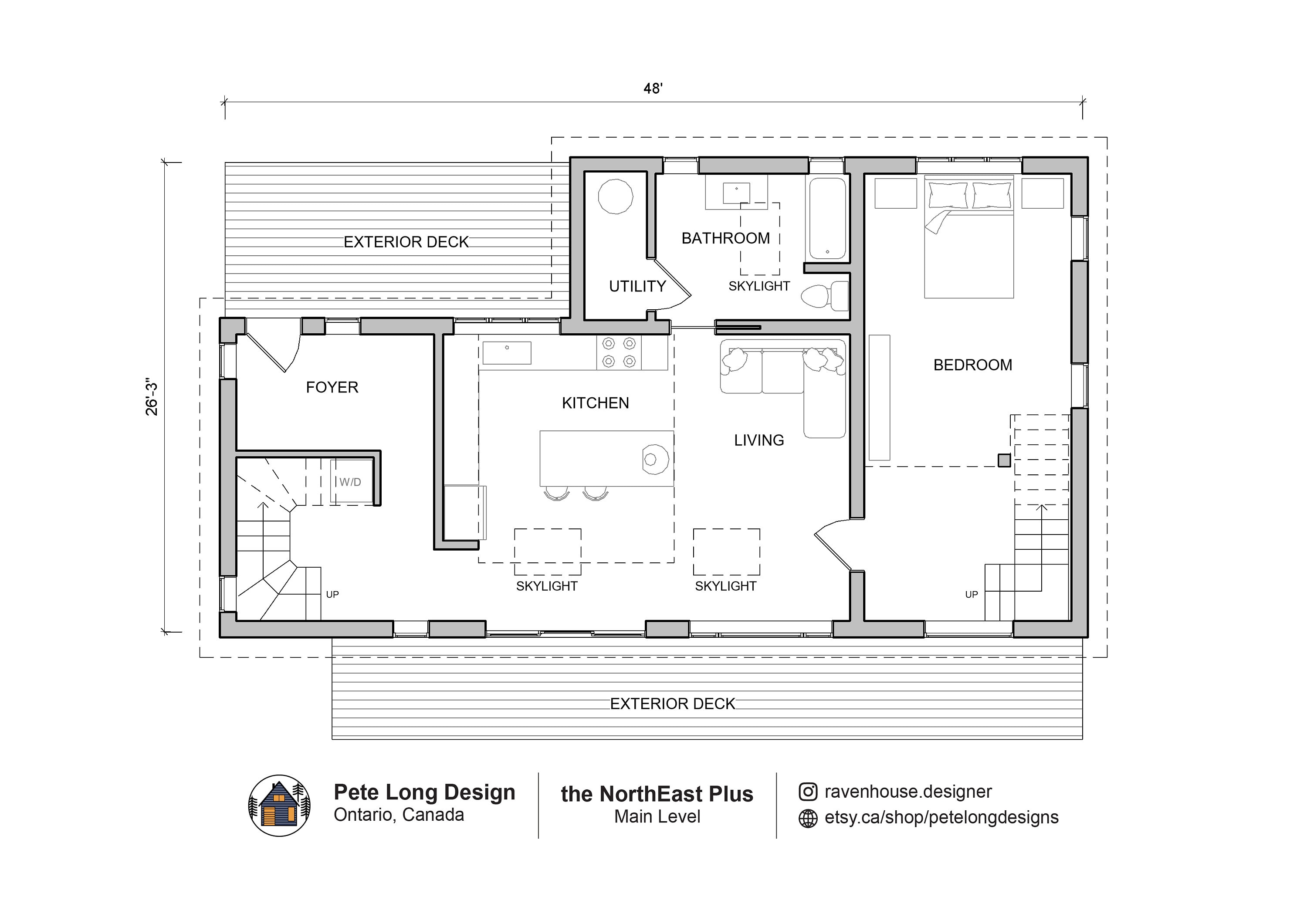

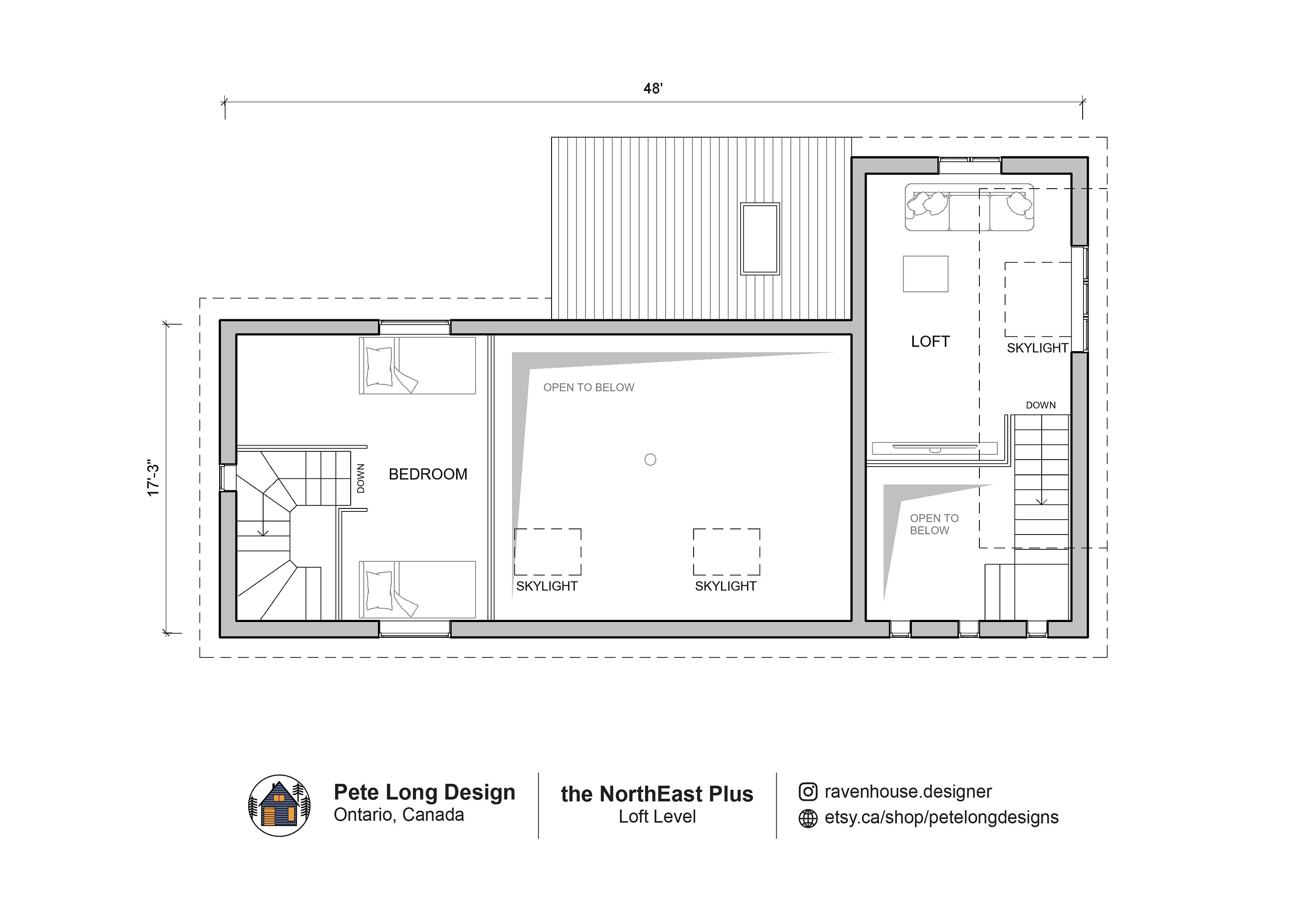

-Floor plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
-Exterior elevations: A blueprint picture of all four sides showing exterior materials and measurements.
-Multiple building sections: Vertical cutaway views of the house from roof to foundation showing details of framing, construction, flooring and roofing.
-Construction details: Shows floor, ceiling, and wall assemblies as well as other typical wall, floor and roof assembly details.
-Exterior finishing options
-Roof framing plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable.
-Enlarged kitchen plan detail
-Enlarged bathroom plan detail
-Kitchen interior elevation
-Bathroom interior elevation
-Low-cost Slab foundation plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
-Window and Door schedule

E&OE
————————-
CAD Set: C$699, please enquire
